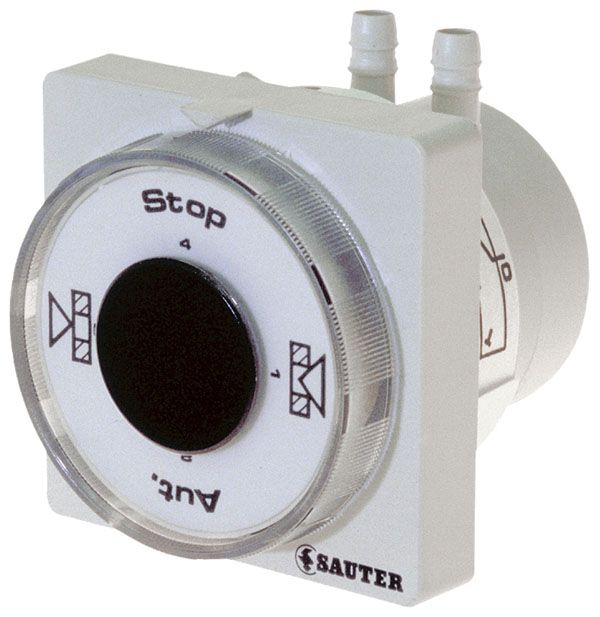

Pneumatic manual switch
XHP 3
Areas of application
Manual change-over of pneumatic signal lines.
Properties
Technical description
Manual change-over of pneumatic signal lines.
Properties
- Four stages
- Can be built into panel or wall-/rail-mounted
Technical description
- kv (water) = 0.11 m³/h
- Nominal flow rate = 3 m³n/h
