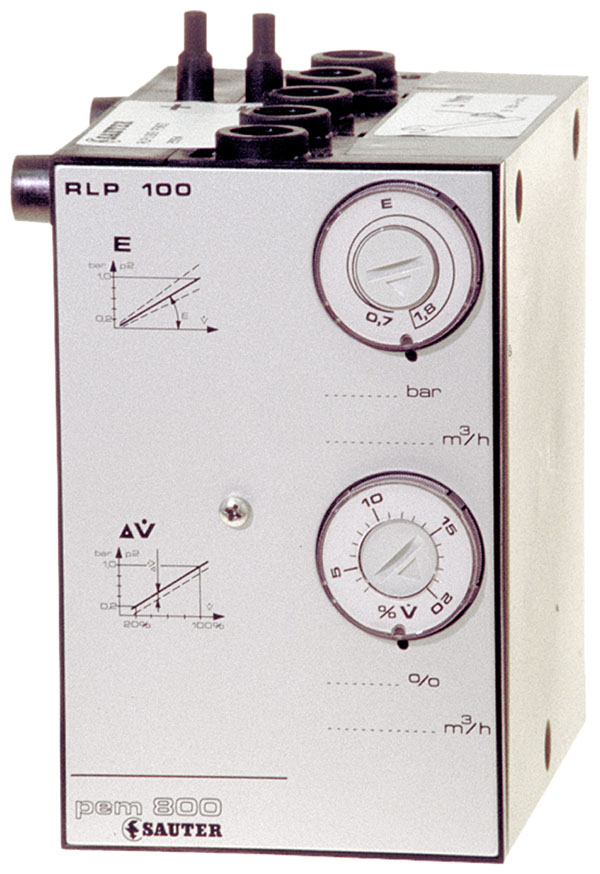

Pneumatic air-volume transducer
RLP100F903, F908
How energy efficiency is improved
Allows demand-based volume flow control for fume cupboards, laboratories and clean rooms
Kenmerken
-
Root-extracted output signal as command variable for extended control loops
-
Special version available for measuring aggressive gases
-
Suitable for explosion hazard zone 1 II 2 G T6
-
Conformity tested as per EN 13463-1 and EN 1127-1 (ex zone 1 II 2 G T6)
-
Accurate, static differential pressure sensor with large measuring range
-
Front plate printed with circuit diagrams for easy identification of the controller functions
-
Compressed-air connections with Rp⅛” female thread
-
Special measuring connection for detecting the air volume
-
Low-pressure connections with dual-diameter connector for soft plastic tubing (internal Ø 4 and 6 mm)
-
1 input
-
Setpoint shift ∆
-
-
1 output
-
Actual value, air volume
-
-
1 adjuster for calibrating the sensor measuring range
-
1 setpoint adjuster for limiting the setpoint shift ∆ to max. ±20%
