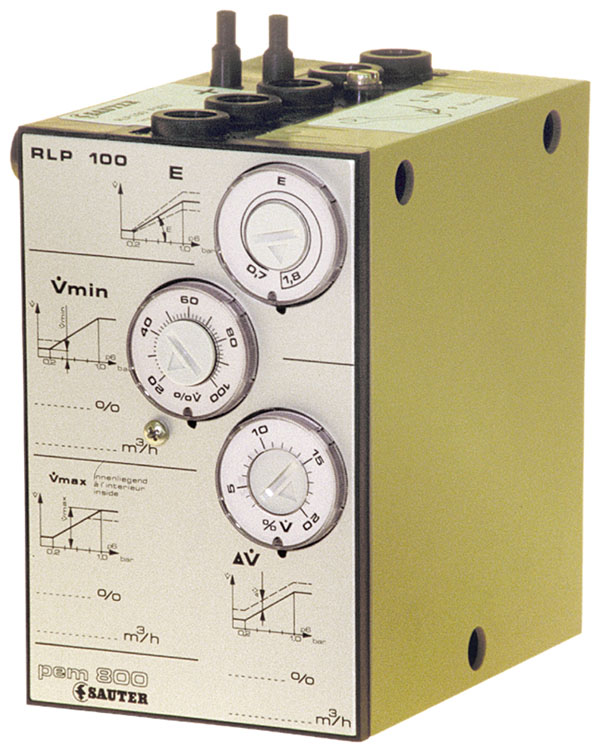

Dual-channel air-volume controller
RLP100F910, F916, F918
How energy efficiency is improved
For demand-based volume flow control of dual-channel systems in offices
Kenmerken
-
Optimum use of energy thanks to RLP100 2-channel controller in combination with room operating units of the TSP, TSFP and TSSP series
-
Compatible with practically all currently-available mixing boxes
-
Suitable for explosion hazard zone 1 II 2 G T6
-
Conformity tested as per EN 13463-1 and EN 1127-1 (ex zone 1 II 2 G T6)
-
Controls constant, switchable or variable air volumes
-
Accurate, static differential pressure sensor with large measuring range
-
Front plate printed with circuit diagrams for easy identification of the controller functions
-
Compressed-air connections with Rp⅛” female thread
-
Special measuring connection for detecting the air volume
-
Low-pressure connections with dual-diameter connector for soft plastic tubing (internal Ø 4 and 6 mm)
-
2 inputs
-
Command variable
-
Day/night change-over or heating/cooling signal
-
-
3 outputs
-
Actual value, air volume
-
Activates two damper actuators, heating and cooling
-
-
1 adjuster for setting the sensor measuring range
-
2 setpoint adjusters for maximum and minimum limitation of the air volume
