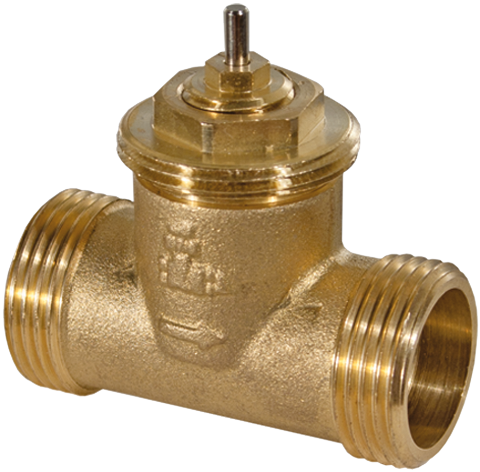

2-way valve, PN 16

VUT

2-way valve, PN 16

How energy efficiency is improved

Reliable actuation in efficient control systems


Kenmerken

  • Regulation of fan coil units, air secondary-treatment units, heating zones and two-pipe systems with heat exchanger in combination with AXF 217S, AXM 217(S), AXS 315S and AXT 301 actuators for unit valves

  • Flat-sealing standard version

  • Adjustable Kvs value

  • When the spindle is pushed in, the valve is closed

  • Closes against the pressure

  • Valve with male thread as per DIN EN ISO 228-1, class B

  • Valve body made of cast brass

  • Stainless-steel spindle

  • Plug with EPDM soft seal

  • Stuffing box with O-ring seal

  • Water quality as per VDI 2035
