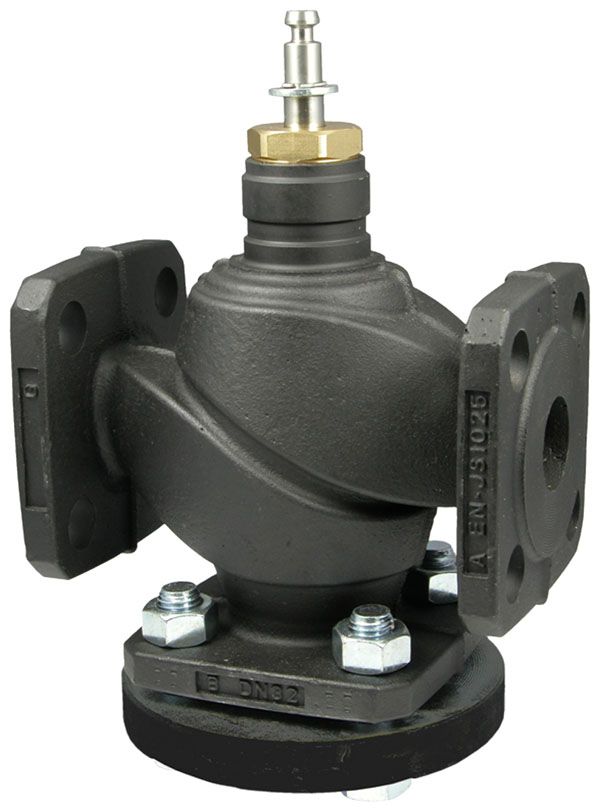

2-way flanged valve, PN 25/16 (el.)
VUG
How energy efficiency is improved
Efficiency means precise and reliable control
Kenmerken
-
Continuous control of cold and hot water in closed circuits, and of steam
-
In combination with valve actuators AVM 322(S), AVM 234S, AVN 224S and AVF 234S as a control unit
-
Water quality as per VDI 2035
-
Valve with flange connection as per EN 1092-2, seal form B
-
Nominal pressure 25 bar, except VUG065F316, nominal pressure 16 bar
-
Not suitable for drinking water
-
Complies with standard for control units as per DIN EN 14597
-
Regulating valve, free of silicone grease, painted black
-
Equal-percentage characteristic, can be set with SUT (SAUTER Universal Technology) valve actuators to linear or quadratic
-
The valve is closed when the spindle is moved out
-
Closing procedure against the pressure or with the pressure
-
Valve body made of ductile cast iron; seat and spindle of stainless steel
-
Plugs of nominal diameter DN 15…50 made of stainless steel with glass-fibre-reinforced PTFE sealing ring
-
Plugs of nominal diameter DN 65…150 made of stainless steel with metal-to-metal seal
-
Maintenance-free stuffing box in brass with spring-loaded PTFE washer
