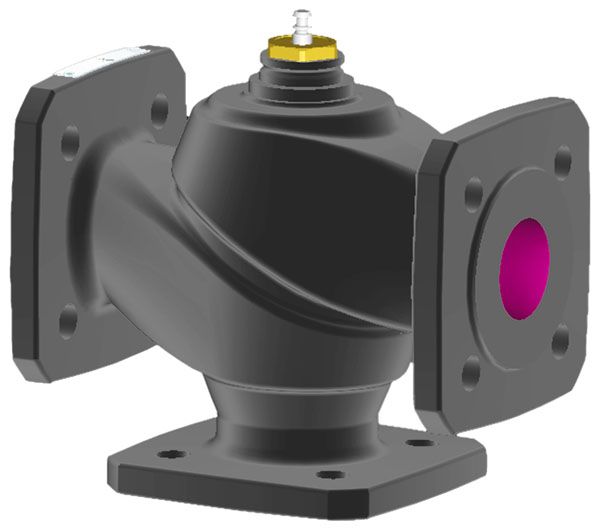

2-way flanged valve, PN 16/10 (el.)
VUE
How energy efficiency is improved
Efficient use in continuous control systems
Kenmerken
-
Continuous control of cold/hot water and low-pressure steam up to 115 °C in closed circuits
-
Water quality as per VDI 2035
-
In combination with valve actuators AVM 105(S), AVM 115(S), AVM 321(S) and AVF 124 and AVF 125(S) as a control unit
-
Not suitable for drinking water
-
Valve with flange connection as per EN 1092-2, seal form B, for PN 16 and PN 10
-
Regulating valve, free of silicone grease, painted black
-
Characteristic can be set with SUT (SAUTER Universal Technology) valve actuator to linear, equal-percentage or quadratic
-
The valve is closed when the spindle is moved out
-
Closing procedure against the pressure or with the pressure
-
Valve body and seat made of grey cast iron
-
Stainless-steel spindle
-
Plug made of brass with glass-fibre reinforced PTFE sealing ring
-
Stuffing box made of brass with wiper ring and double O-ring seal made of EPDM
